Vibration Analysis for SKF and Timken Bearings: Wholesale Supplier with Cross-Reference

High vibration after installation rarely means the bearing is defective—improper mounting or misalignment accounts for the majority of early-stage vibration spikes in the field.

Vibration analysis for SKF and Timken bearings must begin at no-load, before full operation starts. Baseline RMS velocity recorded during installation provides the only reliable reference for distinguishing genuine bearing faults from external machine issues such as misalignment, lubrication errors, or load-induced stress. Without this baseline, maintenance teams routinely misdiagnose healthy bearings as defective, or worse, ignore early-stage race damage until catastrophic failure occurs.

I still remember a cement plant in Riyadh where a spherical roller bearing showed alarming vibration levels within weeks of installation. The client was convinced they had received counterfeit stock. When I arrived on-site, the vibration spectrum told a completely different story—impact frequencies consistent with roller damage from hydraulic mounting done without proper pressure control. The bearing itself was genuine; the installation process had destroyed it. This pattern repeats across industrial sites worldwide, and it is exactly why vibration analysis for SKF and Timken bearings cannot be treated as an afterthought.

The data never lies, but human shortcuts do. Setting a proper vibration baseline during installation is the single most important step in any predictive maintenance program, and it requires understanding both the bearing’s internal geometry and the machine’s operational context [NEED_CITE: ISO 10816-3 vibration severity zones for bearing housings].

How to Set a Vibration Baseline During Installation?

Baseline measurement must occur at no-load conditions, capturing the bearing’s true mechanical signature before operational stresses mask early anomalies.

The principle is straightforward: a bearing’s vibration signature at zero load reflects its internal geometry—raceway roundness, rolling element sphericity, and cage alignment—without interference from external forces. Once the machine reaches full load, vibration from misalignment, thermal expansion, and process forces overlays the bearing’s natural signature, making it nearly impossible to isolate genuine bearing defects.

The procedure follows a structured sequence:

1. Pre-installation visual and dimensional check: Verify bearing outer diameter, bore, and width against housing and shaft tolerances. Any interference fit deviation will generate false vibration signals once the machine runs [NEED_CITE: bearing fit tolerance standards per ISO 286].

2. Mounting with controlled force: Use hydraulic tools or induction heaters for spherical and tapered roller bearings. Never apply direct hammer impact to rings or rolling elements—this creates Brinell marks that manifest as periodic vibration peaks at ball pass frequencies.

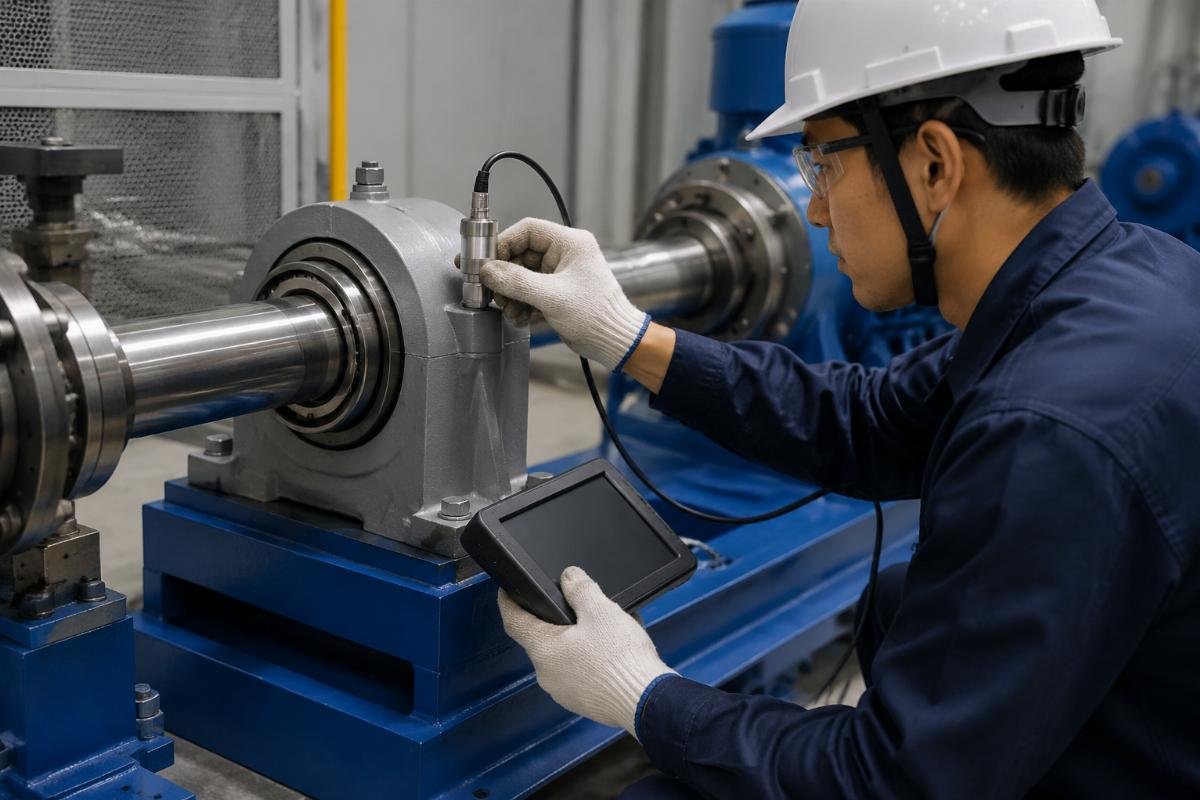

3. No-load run-in period: Operate the machine at reduced speed for an extended warm-up cycle. Record RMS velocity at multiple points on the bearing housing—horizontal, vertical, and axial directions.

4. Document the baseline: Log the RMS velocity values alongside ambient temperature, lubrication type, and machine speed. This becomes the reference point for all future trend comparisons.

5. Full-load verification: After reaching operational parameters, compare vibration levels against the baseline. A moderate increase is normal; a dramatic spike indicates installation damage or external issues.

A paper mill operator in Southeast Asia once reported periodic vibration peaks on a tapered roller bearing application. The frequency analysis showed peaks at multiples of running speed, roughly above baseline levels. Investigation revealed the housing bore was out of roundness tolerance, causing the bearing outer ring to distort during press-fit. The bearing was perfectly functional—the housing geometry was the culprit.

Cross-brand interchange scenarios demand special attention. When replacing an SKF spherical roller bearing with a Timken equivalent—or vice versa—the internal clearance and contact angle differences will produce a different baseline vibration signature. Vibration re-baselining is mandatory after any cross-reference substitution, otherwise the maintenance team will chase phantom faults that do not exist [NEED_CITE: internal clearance differences between SKF and Timken spherical roller bearing series].

What Vibration Levels Indicate Bearing Faults?

ISO 10816 provides the universal framework for interpreting vibration severity, but bearing-specific fault diagnosis requires FFT spectral analysis to isolate race, rolling element, or cage defects.

Vibration severity zones classify machine health into four categories—acceptable, permissible, unsatisfactory, and unacceptable—based on RMS velocity measured on the bearing housing. However, these zones apply to the machine as a whole, not to individual bearing components. To pinpoint the exact fault location, frequency domain analysis is essential.

The diagnostic workflow involves:

1. RMS velocity trending: Compare current readings against the documented baseline. Gradual elevation suggests progressive wear; sudden spikes indicate impact events or lubrication failure.

2. FFT spectral decomposition: Transform the time-domain vibration signal into frequency components. Each bearing defect generates characteristic frequencies—inner race defects appear at ball pass frequency inner race multiplied by the number of rolling elements, outer race defects at ball pass frequency outer race, and rolling element defects at ball spin frequency [NEED_CITE: bearing defect frequency calculation formulas per ISO 15243].

3. Envelope detection for early-stage faults: Demodulation techniques extract high-frequency impact signals buried in low-frequency machine noise. This method detects spalling or cracking before RMS velocity shows any significant change.

4. Trend correlation: Map frequency peaks against known bearing geometry. If the dominant frequency matches the calculated outer race defect frequency, the fault location is confirmed.

A food processing line using deep groove ball bearings experienced elevated high-frequency noise that standard vibration meters failed to capture. Ultrasonic analysis in the high-frequency range revealed lubricant starvation. After verifying lubricant compatibility and re-greasing, the ultrasonic signature dropped substantially, confirming the diagnosis without any bearing replacement.

The critical insight is that vibration analysis for SKF and Timken bearings requires understanding each brand’s internal design characteristics. Timken tapered roller bearings, with their line-contact geometry, generate different vibration signatures than SKF deep groove ball bearings with point-contact geometry. Fault frequency calculations must use the specific bearing’s catalog dimensions, not generic approximations.

How to Distinguish Bearing Faults from External Issues?

Before condemning a bearing based on vibration data, systematically eliminate misalignment, lubrication errors, and load anomalies—these external factors generate the majority of false bearing fault diagnoses.

This is where experience separates effective maintenance programs from costly bearing replacement cycles. High vibration does not automatically mean bearing defect. The diagnostic discipline requires ruling out external causes first.

The elimination sequence:

1. Alignment verification: Use laser alignment tools to check shaft and coupling alignment. Angular or parallel misalignment generates vibration at running speed multiples, often misdiagnosed as bearing outer race defects.

2. Lubrication audit: Confirm lubricant type, quantity, and re-greasing intervals. Over-greasing causes churning and temperature rise; under-greasing generates metal-to-metal contact and high-frequency noise. Both conditions produce vibration signatures that mimic bearing damage [NEED_CITE: lubrication effects on bearing vibration per bearing manufacturer technical guidelines].

3. Load condition assessment: Verify the machine operates within designed load ranges. Overload conditions accelerate fatigue; underload conditions in spherical roller bearings cause roller skidding and cage wear.

4. Housing and shaft inspection: Measure housing bore roundness, shaft journal cylindricity, and fit tolerances. Geometric deviations distort bearing internal clearance, generating vibration indistinguishable from internal defects without frequency analysis.

5. Resonance check: Perform impact testing to identify structural resonance. If the machine’s natural frequency coincides with operating speed, vibration amplification occurs regardless of bearing condition.

A steel mill in the Middle East experienced repeated bearing failures on a conveyor system. Vibration analysis suggested inner race defects. However, thermal imaging revealed excessive housing temperature, and oil analysis showed contamination ingress. The root cause was inadequate seal design allowing scale particles into the lubricant—bearing damage was the symptom, not the cause.

The discipline of elimination prevents unnecessary bearing replacement and identifies the true maintenance priority. When vibration analysis for SKF and Timken bearings is conducted without this systematic approach, maintenance budgets inflate and machine reliability suffers.

When to Replace Versus Re-lubricate Based on Vibration Trends?

Trend analysis over multiple measurement cycles—not single-point readings—determines whether bearing replacement or re-lubrication is the appropriate maintenance action.

Single vibration measurements provide a snapshot; trend analysis reveals the trajectory. The decision matrix depends on the rate of change, the frequency signature, and the operational criticality of the machine.

The decision framework:

1. Stable baseline with minor fluctuations: Continue normal maintenance intervals. Minor variations are normal and reflect operational condition changes.

2. Gradual RMS elevation with no distinct frequency peaks: Indicates general wear or lubrication degradation. Re-lubrication with verified compatible grease often restores acceptable vibration levels. Monitor closely after re-greasing.

3. Sudden spike with impact frequencies: Suggests spalling, cracking, or cage damage. Re-lubrication will not resolve structural defects. Plan bearing replacement during the next scheduled shutdown.

4. Accelerating trend with multiple frequency components: Indicates advanced-stage fatigue with secondary damage. Immediate replacement is necessary to prevent catastrophic failure and collateral machine damage [NEED_CITE: bearing failure progression stages per ISO 15243].

5. Post-re-greasing vibration reduction: Confirms lubrication was the issue. Document the response and adjust re-greasing intervals accordingly.

A mining operation tracked vibration trends on critical crusher bearings over multiple measurement cycles. One bearing showed gradual RMS elevation over several months, with no distinct defect frequencies. Re-greasing reduced vibration to baseline levels, extending service life substantially. Another bearing on the same machine showed sudden spike with outer race defect frequencies—replacement was scheduled immediately, preventing unplanned downtime.

The authenticity of the replacement bearing directly affects vibration performance consistency. Bearings sourced from authorized channels with verified internal geometry produce predictable vibration baselines. Counterfeit or dimensionally inconsistent bearings generate false vibration alarms and unreliable trend data, undermining the entire predictive maintenance program. This is why vibration analysis for SKF and Timken bearings must be paired with rigorous authenticity verification during procurement.

Conclusion

Vibration analysis for SKF and Timken bearings transforms reactive maintenance into predictive reliability when baselines are established correctly and external factors are systematically eliminated.

From installation through full-load operation, vibration data provides the most objective assessment of bearing health available. The discipline of no-load baseline measurement, FFT spectral analysis, and trend monitoring separates effective maintenance programs from costly misdiagnosis cycles. When combined with verified authentic bearings from authorized sources, vibration analysis becomes the foundation of extended service life and unplanned downtime prevention.
