Matching the basic model number between SKF and Timken is never enough — suffix codes for clearance, cage design, and seal type follow entirely different logic across the two brands.

A reliable SKF Timken cross-reference requires逐项 verification of internal clearance group, cage material and structure, seal or shield configuration, internal geometry, precision class, and lubricant fill — not just a side-by-side lookup of the base number.

I still remember a shipment of spherical roller bearings destined for a Middle East infrastructure project. The base model 22320 matched perfectly on paper, but the suffix C3 on the SKF side was swapped against E1 on the Timken side without anyone checking the actual radial clearance range. The bearings seized inside the housing within hours of commissioning. The entire batch was rejected, and the replacement order had to be airlifted — a mid-six-figure loss on a single container. [NEED_CITE: radial clearance group definitions per ISO 5753-1] That failure was not caused by a wrong diameter or width. It was caused by a suffix mismatch that a proper SKF Timken cross-reference checklist would have caught in seconds.

From that point on, I stopped trusting any interchange table that only lines up the numeric portion. A real SKF Timken cross-reference must dissect every suffix field, because the encoding logic behind SKF and Timken suffixes is fundamentally different — and the consequences of ignoring that difference show up on the shop floor, not on the spreadsheet.

Why Basic Model Number Matching Is Not Enough for SKF–Timken Interchange?

The basic model number only locks in the boundary dimensions — bore, outside diameter, and width — while every critical internal parameter lives in the suffix.

Under ISO 15, the basic designation guarantees dimensional interchangeability. That means a 22320 from SKF and a 22320 from Timken will physically fit the same housing and shaft. [NEED_CITE: ISO 15 boundary dimension standards for rolling bearings] But dimensional fit is not functional equivalence. Internal clearance, cage type, roller profile, ring shoulder height, and chamfer dimensions all sit behind the suffix — and those are the parameters that determine whether the bearing survives the actual operating environment.

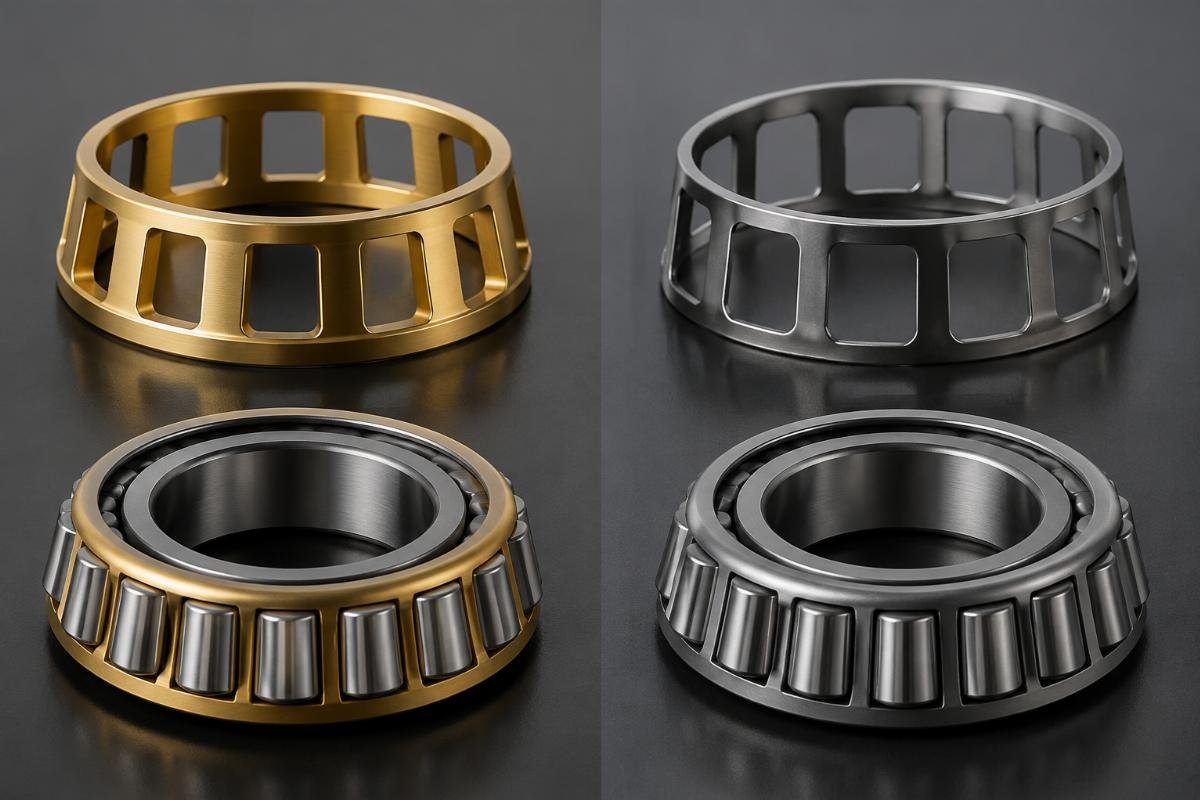

A procurement team in North Africa once replaced a Timken tapered roller bearing 32218 with what they believed was the SKF equivalent. The base number aligned. What nobody verified was the cage material: the original Timken unit used a machined brass cage, while the SKF counterpart they sourced carried a stamped steel cage suffix. Under sustained high-vibration conditions typical of mineral processing screens, the stamped cage fractured within weeks. The downtime ran into multiple weeks of lost production — far exceeding the cost differential between the two cage options. [NEED_CITE: cage material selection guidelines per ABMA standards]

This is the core reason a superficial SKF Timken cross-reference is dangerous. The numeric portion answers "will it fit?" The suffix answers "will it survive?" Skipping the suffix is equivalent to buying a replacement gasket based only on bolt diameter while ignoring the pressure rating.

What Are the Key Suffix Differences Between SKF and Timken Bearing Codes?

SKF and Timken use entirely separate suffix coding systems for internal clearance, cage design, and sealing — there is no one-to-one character mapping.

The three most critical suffix categories — and the ones most frequently misread during cross-brand substitution — are radial clearance, cage type, and seal or shield configuration.

Radial Clearance Groups. SKF designates its clearance groups as C2, C3, C4, and C5, with C3 being the most common for industrial applications involving elevated operating temperatures. Timken uses a parallel but non-identical system: C3, C4, C5 exist, but Timken also uses E1, E2, and other internal design suffixes that shift the clearance range in ways that do not map directly to SKF’s C-series. [NEED_CITE: radial clearance range tables comparison between SKF and Timken technical documentation] A C3 from SKF and a C3 from Timken may overlap, but their lower and upper bounds are not identical. In a high-temperature conveyor application in South America, this overlap gap was enough to cause thermal preload and eventual seizure — because the Timken C3 lower bound sat slightly above the SKF C3 upper bound at the operating temperature in question.

Cage Designations. SKF uses suffixes such as E1 (machined brass cage, roller-centered), CC (stamped steel cage, roller-centered), and CA (machined brass cage, inner-ring-centered). Timken uses its own set: MB (machined brass cage), YM (pin-type cage), and others. There is no universal translation key. A buyer who assumes E1 means the same thing in both catalogs will order the wrong cage every single time. [NEED_CITE: cage suffix comparison across major bearing manufacturer designation systems]

Seal and Shield Codes. SKF uses 2RS1 for contact rubber seals and 2Z for steel shields. Timken uses R for contact seals and ZZ for shields. The sealing lip geometry, rubber compound, and contact pressure differ between the two — meaning a 2RS1 and an R are not functionally identical even when both are described as "contact seal." In a dusty Latin American quarry, a buyer substituted SKF 6206-2RS1 with what was quoted as the Timken equivalent using ZZ shields. The shields kept out large particles but allowed fine silica dust to enter the raceway. Bearing life dropped by a factor of several times compared to the original sealed configuration. [NEED_CITE: seal and shield performance classification per ISO 1132]

How to Build a Reliable SKF–Timken Cross-Reference Checklist for Procurement?

A defensible SKF Timken cross-reference must follow a structured verification sequence — base model first, then six suffix fields, then origin and authenticity confirmation.

When a buyer sends me an OEM part number and asks for a cross-brand alternative, I run every request through the same sequence. Skipping any step is how field failures happen.

Step 1 — Confirm the ISO 15 basic designation. Verify bore, outside diameter, and width match exactly. If the base model does not align, no suffix discussion matters. [NEED_CITE: ISO 15 boundary dimension verification procedure]

Step 2 — Map the radial clearance group. Do not assume C3 equals C3. Pull the actual clearance range table from both manufacturers’ current technical documentation and confirm the operating temperature range falls within both bands.

Step 3 — Identify the cage material and cage centering. Determine whether the original uses a machined brass cage, a stamped steel cage, or a pin-type design. Then match both the material and the centering method (roller-centered vs. inner-ring-centered). Cage centering affects load distribution under dynamic conditions.

Step 4 — Verify seal or shield type. Confirm whether the application requires contact seals, non-contact shields, or an open configuration. Then check the sealing lip material and contact pressure specification — not just the suffix letter.

Step 5 — Check internal design variants. This includes roller profile (barrel convexity, logarithmic modification), ring shoulder heights, and chamfer dimensions. These are often buried in the manufacturer’s internal design notes rather than the suffix itself. [NEED_CITE: internal geometry impact on load distribution per ISO 16281]

Step 6 — Confirm precision class and lubricant fill. Precision class (P0, P6, P5, P4) must match per ISO 492. Grease type and fill volume must be verified if the bearing is pre-lubricated — a mismatch here causes either starvation or churning overheating.

Step 7 — Validate origin and authorization. A correct suffix map means nothing if the bearing itself is counterfeit. Verify the supplier’s authorization chain, request the manufacturer’s certificate of conformance, and cross-check the packaging anti-counterfeit markers. [NEED_CITE: bearing anti-counterfeit verification methods per bearing manufacturer guidelines]

A European MRO distributor once sent me a cross-reference request for a spherical roller bearing used in a paper mill. We ran through all seven steps. At Step 5, we discovered the original SKF unit had a logarithmic roller profile that the Timken equivalent in the buyer’s initial quote did not replicate. Had we shipped without catching that, the edge stress concentration would have caused premature spalling within months. The corrected cross-reference added a small cost premium but extended service life substantially.

This is the workflow we apply across every cross-brand request — whether the swap runs between SKF and Timken, SKF and FAG, NSK and NTN, or any combination across the six major brands we cover. The sequence does not change; only the suffix tables do.

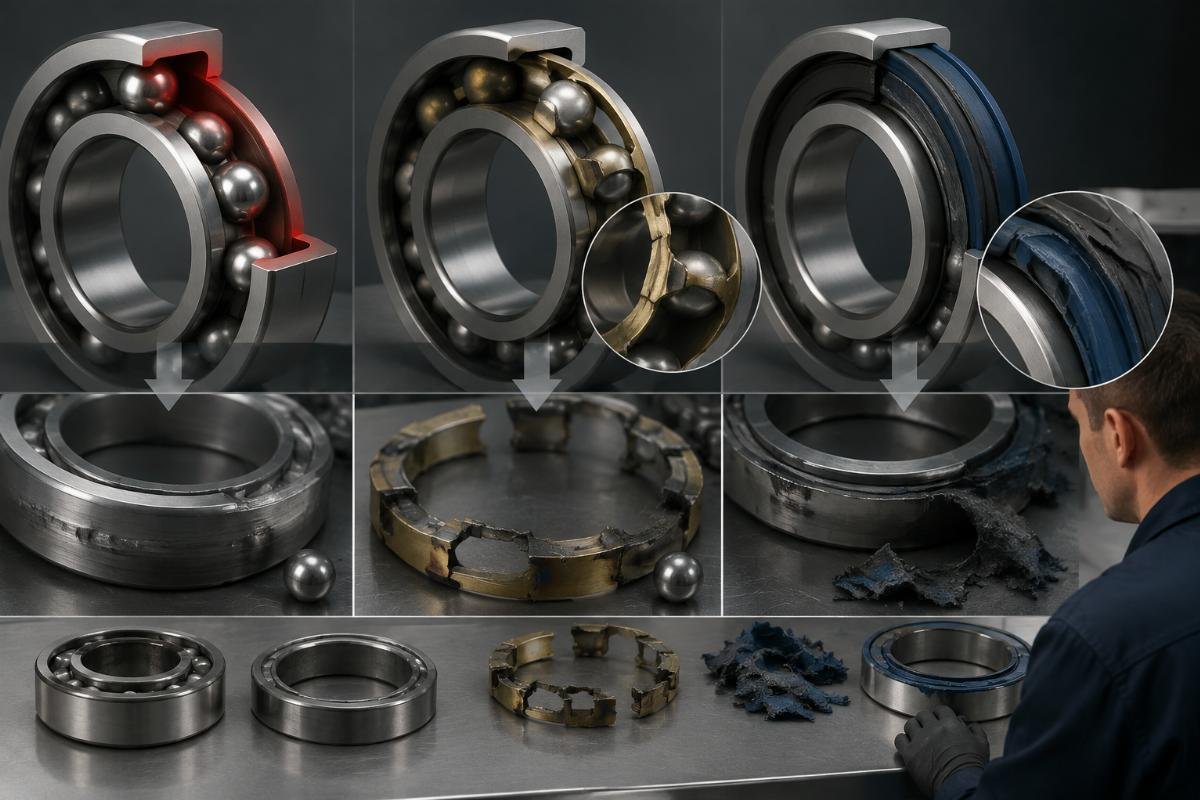

What Field Failures Happen When Cross-Reference Suffixes Are Misaligned?

Every major field failure I have traced back to a cross-brand substitution comes down to one of three suffix mismatches: clearance, cage, or seal.

Clearance mismatch → thermal seizure. When the replacement bearing’s internal clearance is too tight for the actual operating temperature, the rolling elements lose their designed preload margin. The raceway temperatures climb, the clearance collapses further, and the bearing locks. This is exactly what happened with the 22320 shipment to the Middle East mentioned earlier. The C3-to-E1 swap reduced the effective clearance below the thermal expansion threshold of the shaft and housing assembly. [NEED_CITE: thermal expansion effects on bearing internal clearance per ISO 1132]

Cage mismatch → structural fracture. A stamped steel cage cannot replicate the fatigue resistance of a machined brass cage under high-vibration, high-shock conditions. The pin holes in a stamped cage act as stress concentrators. Under sustained vibration, cracks initiate at those points and propagate until the cage disintegrates — typically sending rolling elements into the raceway and destroying the entire assembly. The African mining screen application demonstrated this conclusively.

Seal mismatch → contamination ingress. Shields keep out large debris but allow fine dust to enter. Contact seals keep out fine dust but generate friction heat that may be unacceptable at high-speed operation. Substituting one for the other without analyzing the particle size distribution and the speed-temperature envelope is a gamble. The Latin American quarry case proved that ZZ shields in a fine-silica environment failed to protect the raceway, and bearing life dropped by a factor of several times. [NEED_CITE: contamination particle size vs. seal effectiveness data per ISO 11562]

These three failure modes account for the vast majority of cross-brand substitution complaints I have encountered. None of them were caused by a wrong basic model number. All of them were caused by a suffix that nobody bothered to verify.

How to Verify Authenticity When Sourcing Cross-Reference Bearings?

A correct SKF Timken cross-reference solves the model problem — it does not solve the authenticity problem.

The cross-brand interchange market is a prime target for counterfeiters, because buyers are already in a substitution mindset and may be less rigorous about source verification than they would be with a direct OEM order. A bearing that carries the correct model number and the correct suffix can still be a fake if it comes from an unauthorized channel.

The verification process must run in parallel with the technical cross-reference, not after it.

First, confirm the supplier’s authorization status. Every major manufacturer — SKF, Timken, FAG, NSK, NTN, KOYO — maintains a published list of authorized distributors by region. A supplier who cannot produce a current authorization certificate should be treated as unverified regardless of how competitive the price is. [NEED_CITE: authorized distributor verification procedures per bearing manufacturer official channels]

Second, request the manufacturer’s certificate of conformance. This document traces the bearing batch back to the production facility and confirms the technical specifications match the ordered suffix configuration.

Third, inspect the packaging anti-counterfeit features. Major manufacturers have implemented QR codes, holographic labels, and micro-text printing on their packaging. These features can be verified through the manufacturer’s official app or website. [NEED_CITE: anti-counterfeit packaging feature descriptions per bearing manufacturer official documentation]

Fourth, cross-check the country of origin. The bearing’s origin marking must be consistent with the manufacturer’s known production facilities for that product line. A mismatch between the stated origin and the manufacturer’s actual factory footprint is a red flag.

We handle authenticity verification as a standard part of every cross-reference order. When a buyer asks us to swap an SKF 22320 to a Timken equivalent, we do not just pull the suffix map — we also confirm the Timken unit comes from an authorized source, carries valid traceability documentation, and passes the packaging authenticity check before it ships. This applies equally to NSK, FAG, NTN, and KOYO cross-references. The technical work and the authenticity work are one process, not two separate steps.

Conclusion

A SKF Timken cross-reference that only matches the base model number is a specification for failure — the suffix fields for clearance, cage, seal, internal design, precision, and lubrication must be verified one by one before any substitution is approved.

Cross-brand interchange is a standard procurement reality, but it demands a disciplined checklist approach and parallel authenticity verification. The technical mapping and the source validation are inseparable parts of the same process.
