Mixing SKF and Timken wheel end torque specifications is the single fastest way to destroy a fresh set of tapered roller bearings.
SKF and Timken wheel end assemblies use fundamentally different preload philosophies: SKF targets a controlled rolling drag specification, while Timken targets a defined axial end-play range. Applying one brand’s torque values to the other’s hardware will produce either zero clearance or excessive preload, and both conditions lead to early thermal failure.
I first saw this play out in a fleet shop outside Chicago. A technician installed a fresh set of Timken tapered rollers into a steer axle hub and torqued the spindle nut to the SKF specification he had memorized. The rig came back after a short run with the hub hot enough to blister paint, and the rollers showed classic skid marks across the cup faces. The torque differential between the two specs was enough to collapse the designed clearance entirely. That kind of failure pattern shows up in shops across multiple regions every year, and it is almost always traced back to a mismatched torque card. [NEED_CITE: root cause distribution of premature wheel end bearing failures per STLE field surveys]
Getting the right numbers on the bench is the entire difference between a hub that runs for its full service interval and one that burns out on the first loaded trip. Let me walk through why the two brands diverge, how to apply each spec correctly, and where installers most often go wrong.

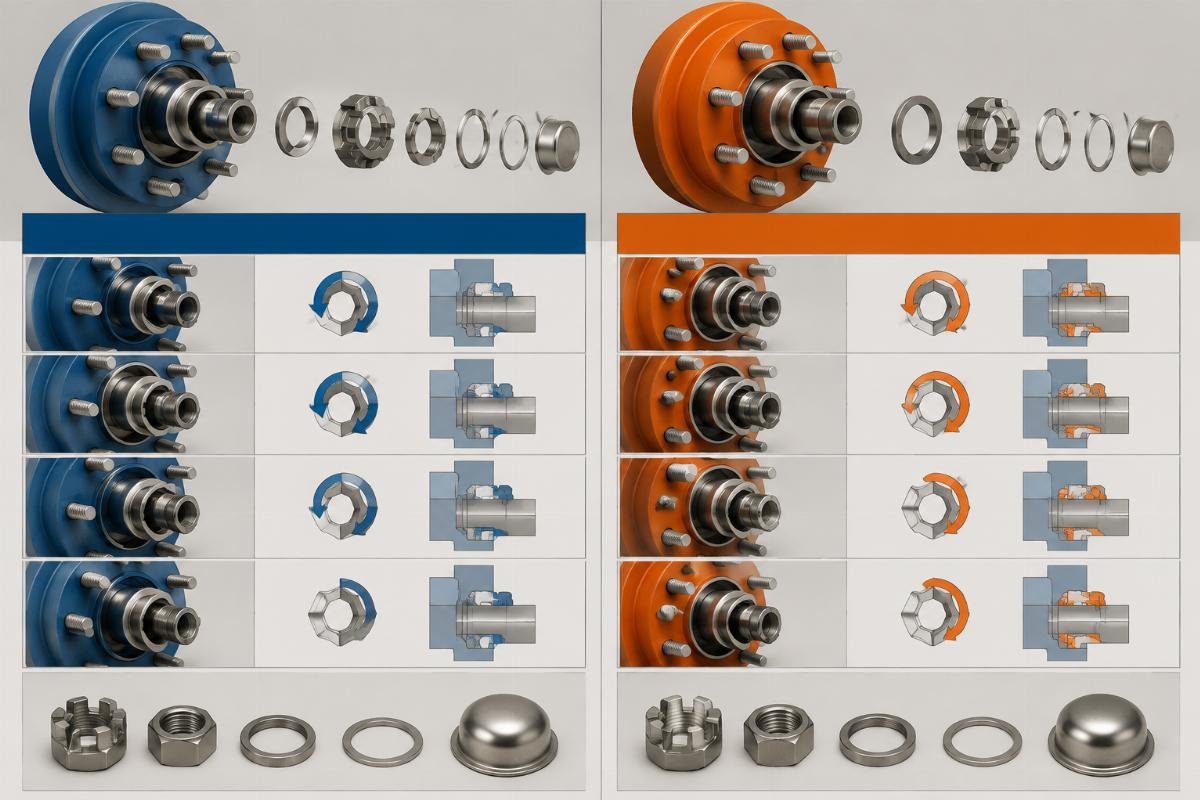

Why SKF and Timken Torque Specs Are Not Interchangeable?
The two manufacturers design their wheel end systems around different preload control methods, and the spindle nut torque is only the final step of a longer adjustment sequence.
SKF’s classic conical roller wheel end design philosophy centers on setting a specific rolling torque value after the bearing pack has been rotated several times to seat the rollers. The spindle nut is first run up to a seating torque, then backed off by a defined angle, and finally locked at a secondary torque that produces the target drag. Timken’s approach, by contrast, starts by establishing a precise axial end-play measurement using a dial indicator, with the spindle nut position locked only after the indicator reads within the specified clearance band. [NEED_CITE: SKF vs Timken wheel end adjustment procedure differences per manufacturer installation manuals]
The physical reasons behind the divergence are easy to miss on the shop floor. Internal clearance groups differ between the two brands even at the same bore size. Locknut thread pitch can vary between metric and imperial hardware families. Spacer and washer stack heights are not standardized across brands. When you apply a Timken end-play procedure to an SKF hub, or an SKF drag-torque procedure to a Timken hub, you are effectively ignoring all three of those dimensional differences at once.
A distributor in the Middle East once sent back a full batch of wheel end kits after several fleets reported hubs locking up within the first few thousand miles. The root cause was not the bearings themselves. The shop technicians had been using a single generic torque card for every brand that came through the door, and the locknut torque they applied to one brand’s hardware was producing roughly double the intended preload on another brand’s components. The resulting batch failure rate jumped noticeably compared with their historical norm, and the replacement cost ran into a mid-six-figure sum across the affected fleets.
The takeaway is simple: the torque card must match the bearing brand and the specific hub hardware stack, not just the bore size.

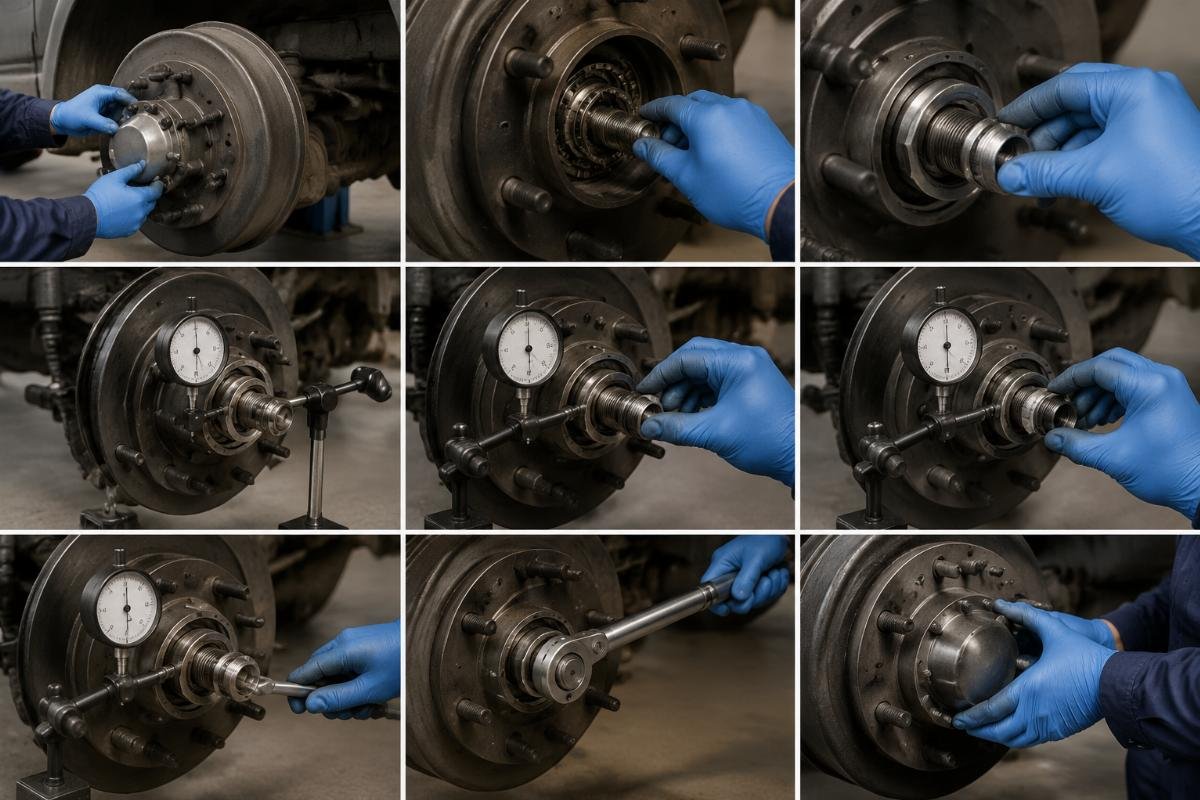

Step-by-Step Torque Application for Wheel End Assemblies
A correct wheel end adjustment is a multi-stage process, not a single torque value, and skipping the intermediate steps is the most common source of field failures.
The following sequence reflects the general structure shared by both SKF and Timken procedures, with the critical divergence points noted. [NEED_CITE: standard wheel end bearing adjustment sequence per TMC RP 618 and manufacturer service literature]
- Clean and inspect all components. The spindle threads, nut threads, washer faces, and bearing cups must be free of debris, old thread locker, and burrs. Any contamination here will distort the torque-to-preload relationship.
- Seat the bearings with an initial run-up. Rotate the hub assembly while tightening the spindle nut to the brand-specific seating torque. This step seats the rollers against the cup and cone shoulders and removes the initial stack looseness.
- Back off the nut by the specified angle. SKF typically calls for a defined angular back-off measured in flats or degrees, while Timken procedures often call for loosening until the nut is finger-tight and then re-tightening to a secondary position. The two methods are not interchangeable.
- Apply the final lock torque or set end-play. For SKF-style drag-torque systems, a torque wrench is used to hit the target rolling drag value on the hub. For Timken-style end-play systems, a dial indicator is mounted on the spindle nose, the nut is nudged to achieve the specified axial clearance, and then the lock washer or cotter pin is engaged.
- Verify free rotation and recheck. Spin the hub by hand and confirm smooth rotation with no tight spots. Recheck the final torque or end-play reading after the first short run, as thermal seating can shift the stack slightly.
A European transport operator running mixed-brand trailers once reported that hubs rebuilt with one particular brand’s bearings were consistently showing abnormal drag readings after adjustment, even when the technician followed the correct procedure. Investigation showed that the replacement locknuts sourced from a third-party supplier had a slightly different thread pitch than the genuine hardware, which meant the angle-back-off step was producing a different final preload than intended. Switching back to brand-matched hardware resolved the issue entirely.

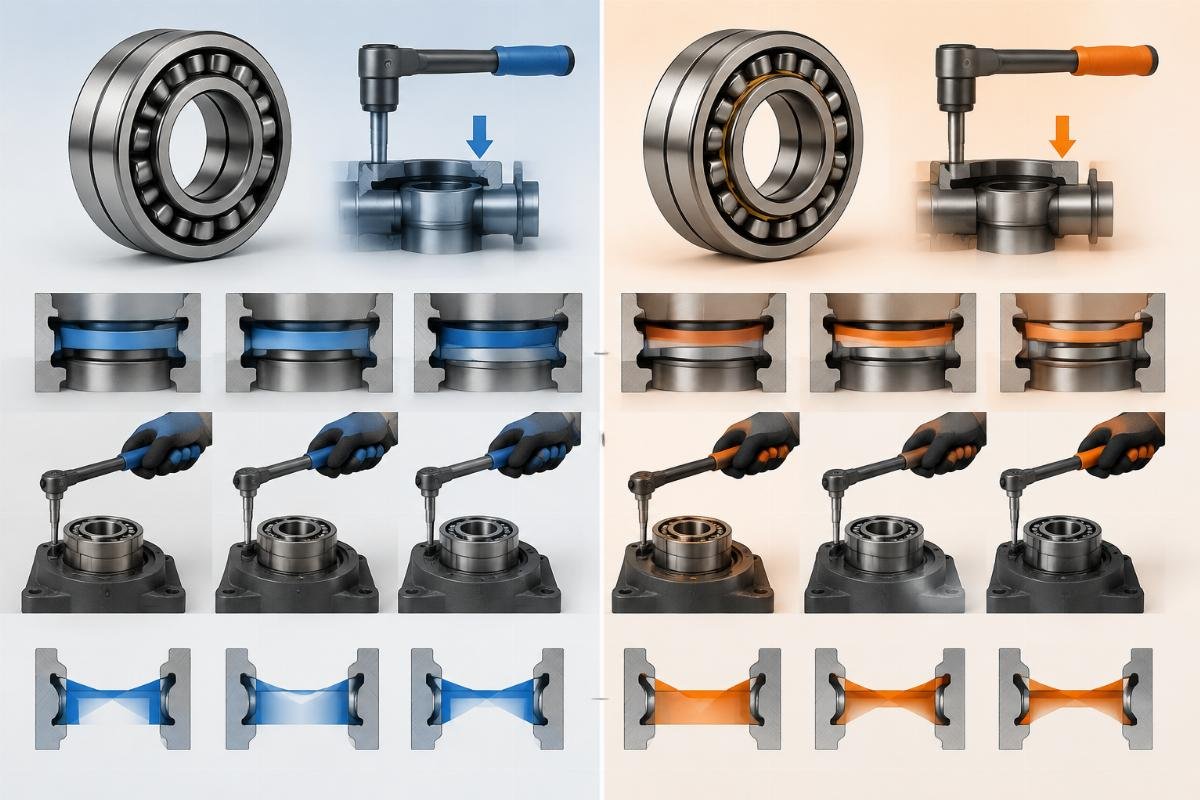

SKF vs Timken Torque Chart by Bearing Bore Size
The table below provides a qualitative comparison of how the two brands structure their torque and adjustment specifications across common bore size ranges. Exact numerical torque values must always be confirmed against the current manufacturer service manual for the specific part number in hand.
| Bore Size Range | SKF Adjustment Method | SKF Final Lock Stage | Timken Adjustment Method | Timken Final Lock Stage |
|---|---|---|---|---|
| Small bore (up to ~50 mm) | Drag-torque target after angle back-off | Secondary nut torque to achieve rolling drag | End-play setting with dial indicator | Nut position locked at specified clearance |
| Medium bore (~50 mm to ~100 mm) | Drag-torque target with defined rotation count | Secondary nut torque with lock washer engagement | End-play setting with dial indicator | Nut position locked with cotter pin or lock tab |
| Large bore (above ~100 mm) | Drag-torque target with thermal compensation note | Secondary nut torque with recheck after heat cycle | End-play setting with thermal growth allowance | Nut position locked with heavy-duty retention hardware |
The key point is not the exact numbers in the table, but the structural difference in the final lock stage. SKF procedures consistently reference a rolling drag measurement as the acceptance criterion, while Timken procedures consistently reference an axial clearance measurement. [NEED_CITE: SKF and Timken wheel end preload acceptance criteria comparison per respective technical bulletins]
When I prepare shipment documentation for wheel end kits, I include a dual-brand parameter card that lets the receiving shop cross-check which procedure applies to the specific bearing and hub hardware combination they are installing. This avoids the most common mistake of grabbing the nearest torque card without confirming the brand match. For buyers sourcing replacement hardware across multiple brands, having a verified cross-reference between the bearing part number and the correct adjustment procedure is worth far more than a generic torque chart.
Common Installation Mistakes and How to Avoid Them
Three recurring errors account for the majority of premature wheel end bearing failures that are not caused by contamination or lubrication issues.
The first mistake is using a single torque specification across multiple bearing brands. As covered above, the preload philosophies differ, and the spindle nut torque that produces correct preload on one brand will over-preload or under-preload another. The fix is to maintain separate, brand-specific torque cards at every adjustment station and to verify the brand of the bearing being installed before reaching for the wrench.
The second mistake is overtightening "for safety." Some technicians believe that a tighter spindle nut produces a more secure assembly. In reality, excessive preload dramatically increases the contact stress between the rollers and the raceways, accelerates lubricant breakdown, and generates heat that can collapse the remaining clearance entirely. A hub that is over-torqued will often feel deceptively smooth during the initial hand-spin check, only to fail after thermal cycling under load. [NEED_CITE: effect of excessive bearing preload on roller-raceway contact stress per rolling bearing fatigue theory]
The third mistake is reusing stretched or damaged locknuts and washers. The locknut is a precision retention component, not a generic fastener. A nut with deformed threads or a washer with a worn face will not hold the adjusted position, and the preload will drift during the first few hundred miles. Authentic replacement hardware from the bearing manufacturer or an authorized source should always be used.
A fleet maintenance supervisor in North America once traced a cluster of steer-axle bearing failures back to a batch of aftermarket locknuts that had been substituted when genuine hardware was temporarily out of stock. The substitute nuts had a marginally different thread form, and the angle-back-off step was producing inconsistent final preload across the fleet. After switching to verified genuine retention hardware, the failure rate dropped back to the expected baseline.

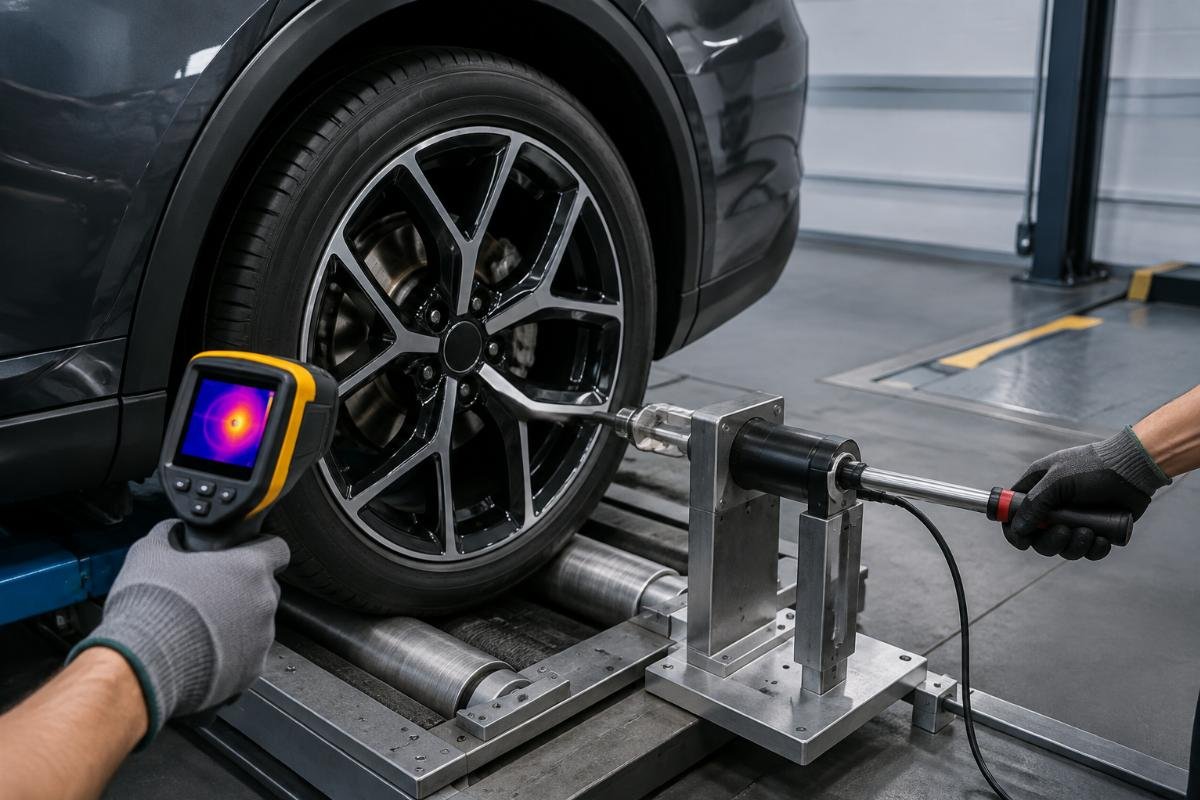

How to Verify Correct Preload After Installation?
A proper post-installation verification combines a rolling torque check with a thermal monitoring period, and skipping either step leaves a significant gap in quality assurance.
Immediately after adjustment, the hub should rotate freely by hand with no binding or tight spots. For SKF-style drag-torque systems, a torque wrench or drag-torque gauge is used to confirm that the rolling resistance falls within the specified range. For Timken-style end-play systems, a dial indicator reading is taken to confirm that axial clearance is within the target band. [NEED_CITE: wheel end bearing post-installation verification methods per TMC recommended practices]
After the vehicle completes its first loaded run, the hub temperature should be monitored. A correctly adjusted wheel end will reach a stable operating temperature and remain there. A hub that continues to climb in temperature, or that is too hot to touch near the outer bearing cup, is a strong indicator of excessive preload. In such cases, the adjustment should be revisited before the vehicle returns to full service.
Some advanced fleet operations use onboard temperature monitoring sensors to track hub temperatures continuously. This approach provides early warning of preload drift or lubrication breakdown before a catastrophic failure occurs. Even without sensors, a simple infrared temperature check at the end of the first loaded trip can catch the majority of adjustment-related issues.
A South American mining operation running heavy haul trucks implemented a mandatory post-installation temperature check as part of their wheel end rebuild procedure. Within the first year, they identified and corrected several adjustment-related issues that would otherwise have resulted in roadside failures. The cost of the temperature checks was negligible compared with the cost of a single unscheduled roadside bearing replacement in a remote pit.
Conclusion
SKF and Timken wheel end assemblies require distinct adjustment procedures, and treating their torque specifications as interchangeable is a direct path to premature bearing failure.
The structural difference between drag-torque and end-play preload methods means that every step of the adjustment sequence must match the bearing brand and the specific hub hardware stack. Multi-stage torque application, brand-specific parameter cards, genuine retention hardware, and post-installation thermal verification together form the minimum standard for a reliable wheel end rebuild.
