Identical model numbers do not guarantee interchangeable performance in API 610 petrochemical pumps. SKF Timken bearings petrochemical applications demand cross-referencing beyond the basic bore and outside diameter—internal clearance classes, cage materials, and seal geometries differ between brands and directly dictate whether a replacement bearing survives one maintenance cycle or triggers an unplanned shutdown. When substituting SKF for Timken—or vice versa—in high-temperature, heavy-load, continuous-duty petrochemical pumps, engineers must validate clearance group (C3/C4), cage material compatibility with process temperature, and seal arrangement against the specific API 610 pump class. Skipping this verification is the single most common cause of premature seal failure and bearing distress in downstream oil and gas operations.

I first saw this play out at a refinery along the Niger Delta coast. A maintenance team replaced a set of Timken tapered roller bearings on a hot crude oil transfer pump with what the local market called "the same size" units from an unverified source. Within weeks, the mechanical seal began weeping. Within a further short period, the entire pumping line was offline—costing several times what a proper bearing set would have run. The failure was not the bearing itself at first glance; it was the internal clearance mismatch that let the rollers skid instead of roll at elevated process temperatures, generating heat that the seal could not contain. That episode drove home a principle I have carried into every petrochemical site since: SKF Timken bearings petrochemical interchange is never a catalog lookup—it is an engineering verification. [NEED_CITE: API 610 centrifugal pump bearing selection requirements]

The rest of this article walks through the cross-reference methodology, field failure patterns, and authenticity verification steps that separate a reliable bearing substitution from an expensive lesson.

Why SKF and Timken Bearings Are Not Simply Interchangeable in Petrochemical Pumps

The assumption that "same model number equals direct swap" is the most dangerous shortcut in MRO procurement for rotating equipment. SKF Timken bearings petrochemical applications expose three hidden mismatches that never appear on a basic dimensional printout: internal clearance group, cage material, and seal or shield configuration.

Tapered roller bearings and spherical roller bearings used in API 610 process pumps operate under conditions where even a single clearance class shift changes the loaded zone inside the bearing. A C3 clearance bearing substituted where a C4 is specified will preload excessively at process temperature, accelerating fatigue spalling on the raceways. A C4 substituted where C3 is required will allow excessive internal movement, producing vibration that destroys the shaft seal. [NEED_CITE: ISO bearing internal clearance classification CN C3 C4 C5]

Cage material is equally unforgiving. Standard polyamide cages perform well at ambient temperatures but soften rapidly once process heat pushes the bearing outer ring past certain thresholds. Switching from a brass cage to a polymer cage—or the reverse—without checking the lubricant compatibility and temperature envelope can lead to cage fracture under the combined thermal and radial loads typical of refinery hot oil services. [NEED_CITE: bearing cage material temperature limits and lubricant compatibility]

Seal and shield arrangements carry their own brand-specific geometry. A contact seal designed for one manufacturer’s groove profile may not seat correctly in another’s, allowing contaminant ingress or grease purge that starves the bearing of lubrication over time. In petrochemical environments where hydrogen sulfide, aromatic hydrocarbons, and fine catalyst dust are present, even minor seal misfit accelerates degradation dramatically. [NEED_CITE: bearing seal type selection for contaminated industrial environments]

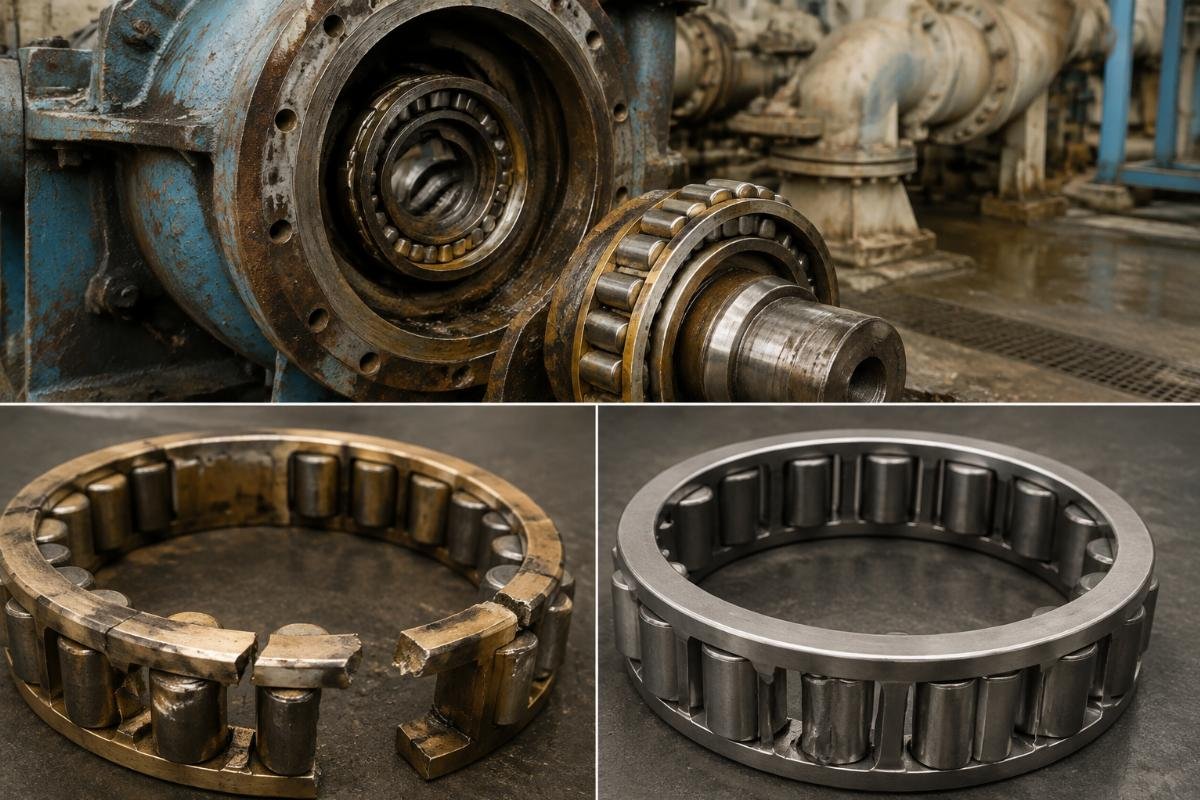

During a site visit to a fertilizer plant in East Africa, I reviewed the failure history of a slurry pump that had consumed three bearing sets in a single season. The original specification called for a spherical roller bearing with a specific clearance and a machined brass cage. The replacement units, sourced through a general trader, carried a standard clearance and a pressed steel cage. The cage failed under the combined radial and axial shock loads of the slurry service, and the shortened replacement cycle multiplied maintenance costs noticeably. SKF Timken bearings petrochemical selection, in that case, had been reduced to a bore-and-OD match—nothing more.

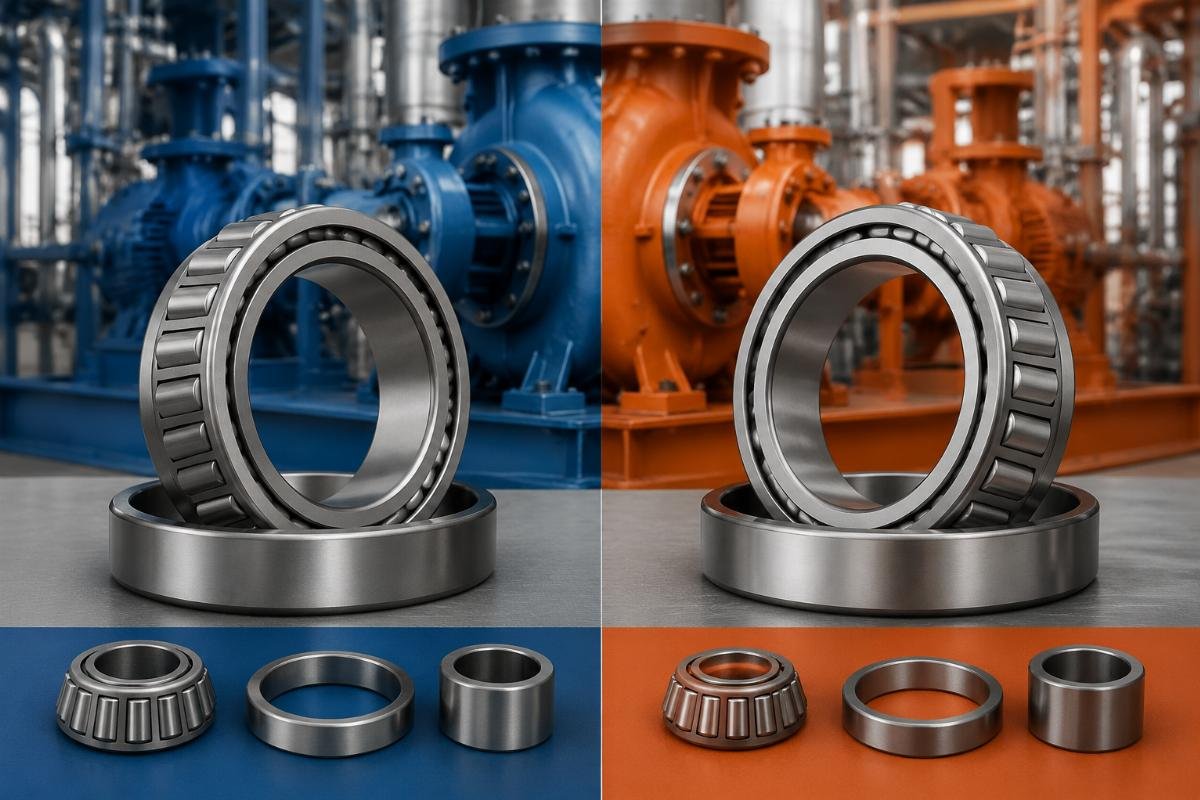

How to Cross-Reference SKF and Timken Bearings for API 610 Applications

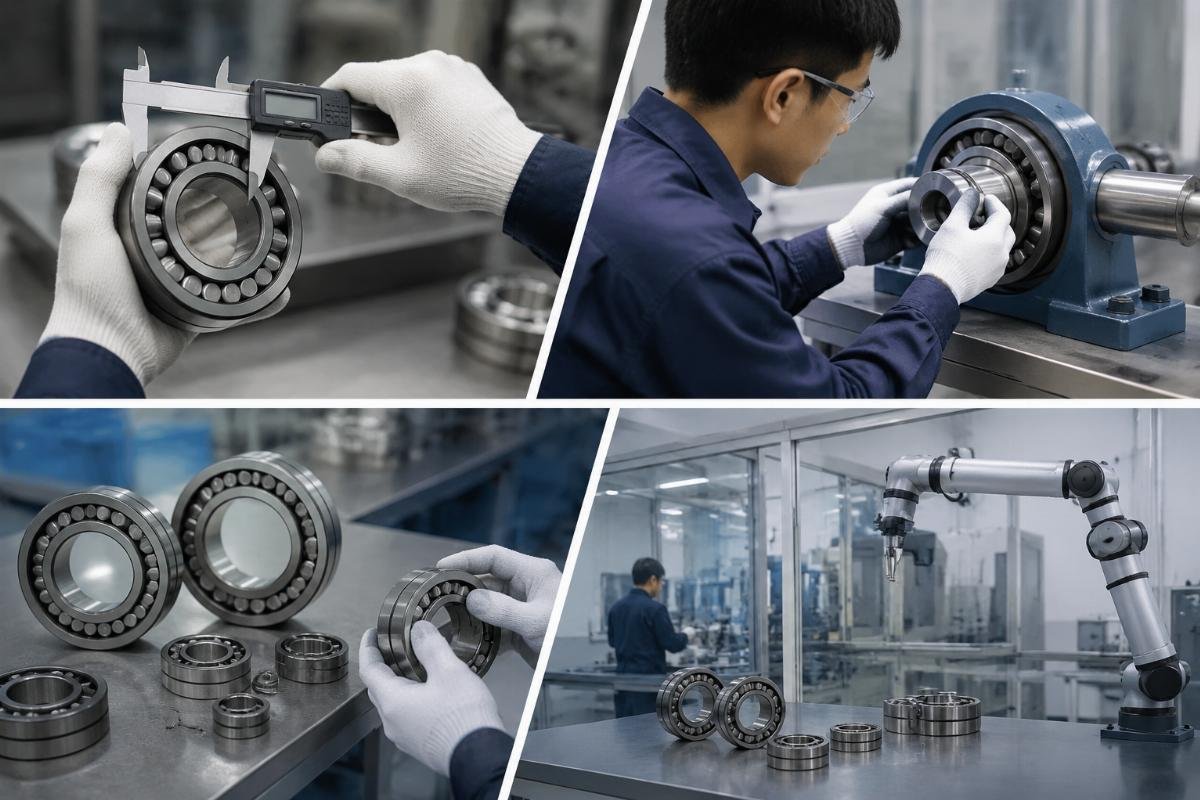

A reliable cross-reference for SKF Timken bearings petrochemical pump service must move through three verification layers: dimensional equivalence, internal design equivalence, and application-condition equivalence.

The first layer—dimensional equivalence—is where most procurement teams stop, and where most mistakes begin. Bore diameter, outside diameter, and width may match perfectly between an SKF designation and a Timken designation, yet the internal geometry can differ in roller count, roller profile, and contact angle. For tapered roller bearings, the contact angle directly affects the axial load capacity and the required preload adjustment. [NEED_CITE: tapered roller bearing contact angle and axial load capacity relationship]

The second layer—internal design equivalence—requires matching the clearance class to the operating temperature range of the pump. API 610 centrifugal pumps in refinery hot oil service routinely run at temperatures where the bearing outer ring reaches levels that demand C3 or C4 clearance to avoid thermal preload. The cross-reference must confirm that both the SKF and Timken designations carry the same clearance suffix, and that the residual internal clearance at operating temperature remains within the manufacturer’s recommended window. [NEED_CITE: API 610 bearing operating temperature and clearance selection]

The third layer—application-condition equivalence—covers cage material, lubrication type, and seal arrangement. A cross-reference table that ignores these parameters will pass a bearing that is dimensionally and internally correct but application-wrong. The table below illustrates the verification dimensions that must be checked side by side:

A maintenance buyer at a Middle East petrochemical complex once asked our team to cross-reference a set of spherical roller bearings for a crude unit fin-fan cooler. The original Timken units carried a C4 clearance and a brass cage. The proposed SKF alternative, pulled from a regional distributor’s shelf stock, was C3 with a polymer cage. On paper, the bore and OD matched. On the pump, the C4-to-C3 downgrade would have caused thermal preload within hours of startup at process temperature, and the polymer cage would have faced accelerated wear in the high-vibration fan service. The cross-reference caught both mismatches before a single unit was installed. SKF Timken bearings petrochemical interchange, handled at this level of detail, prevents failures that no amount of post-installation monitoring can recover from.

What Field Failures Reveal About Counterfeit and Mis-Specified Bearings

Field failures in petrochemical pump bearings fall into two broad categories: genuine bearings mis-specified for the application, and counterfeit or non-genuine bearings that pass visual inspection but fail under load. Both categories produce expensive downtime, and both are preventable with the right verification discipline.

At a refinery in West Africa, the hot crude oil transfer pump I mentioned earlier illustrates the mis-specification pattern. The replacement bearings were not counterfeit—they were genuine products from a recognized manufacturer—but they were selected purely on dimensional equivalence. The internal clearance was wrong for the operating temperature, and the cage material was not rated for the process heat combined with the process fluid’s chemical environment. The seal began leaking within a short operating window, and the subsequent shutdown cost the refinery a mid-six-figure sum in lost throughput and emergency repair. [NEED_CITE: bearing failure mode analysis per ISO 15243 damage categories]

The counterfeit pattern tells a different but equally costly story. A petrochemical distributor in the Gulf region received a bulk order of tapered roller bearings from a new sourcing channel. The packaging looked correct—the boxes carried the expected branding, the labels matched the catalog numbers, and the units felt solid in hand. But when the distributor’s quality team ran the QR-code verification against the manufacturer’s authentication database, a noticeable portion of the batch failed the check. Further dimensional inspection revealed that the inner ring bore tolerances on the failed units were outside the acceptable range, and the surface finish on the roller paths showed tool marks inconsistent with the manufacturer’s production facilities. SKF Timken bearings petrochemical authenticity verification, in this case, intercepted a batch that would otherwise have been installed on critical process pumps across multiple customer sites. [NEED_CITE: counterfeit bearing identification methods and dimensional tolerance verification]

The economic pattern across both failure types is consistent: the cost of a bearing set is a small fraction of the cost of an unplanned shutdown in a continuous-process petrochemical plant. A bearing that fails to survive a single maintenance interval because of mis-specification or counterfeiting does not just cost its purchase price—it costs the lost production, the emergency labor, the collateral damage to seals and shafts, and the reputational hit with the plant operator.

How to Verify Authenticity Before Installation

Authenticity verification for SKF Timken bearings petrochemical applications must combine three independent checks: authorized-channel sourcing confirmation, manufacturer digital authentication, and physical dimensional inspection. Relying on any one of these alone leaves a gap that counterfeiters have learned to exploit.

The first check—authorized-channel sourcing—is the foundation. Bearings sourced through the manufacturer’s authorized distributor network carry a traceable chain from the production facility to the end user. This chain can be verified through the manufacturer’s online distributor locator or through direct confirmation with the manufacturer’s regional office. SKF Timken bearings petrochemical procurement through authorized channels eliminates the majority of counterfeit exposure before the goods even arrive on site. [NEED_CITE: authorized bearing distributor verification through manufacturer channels]

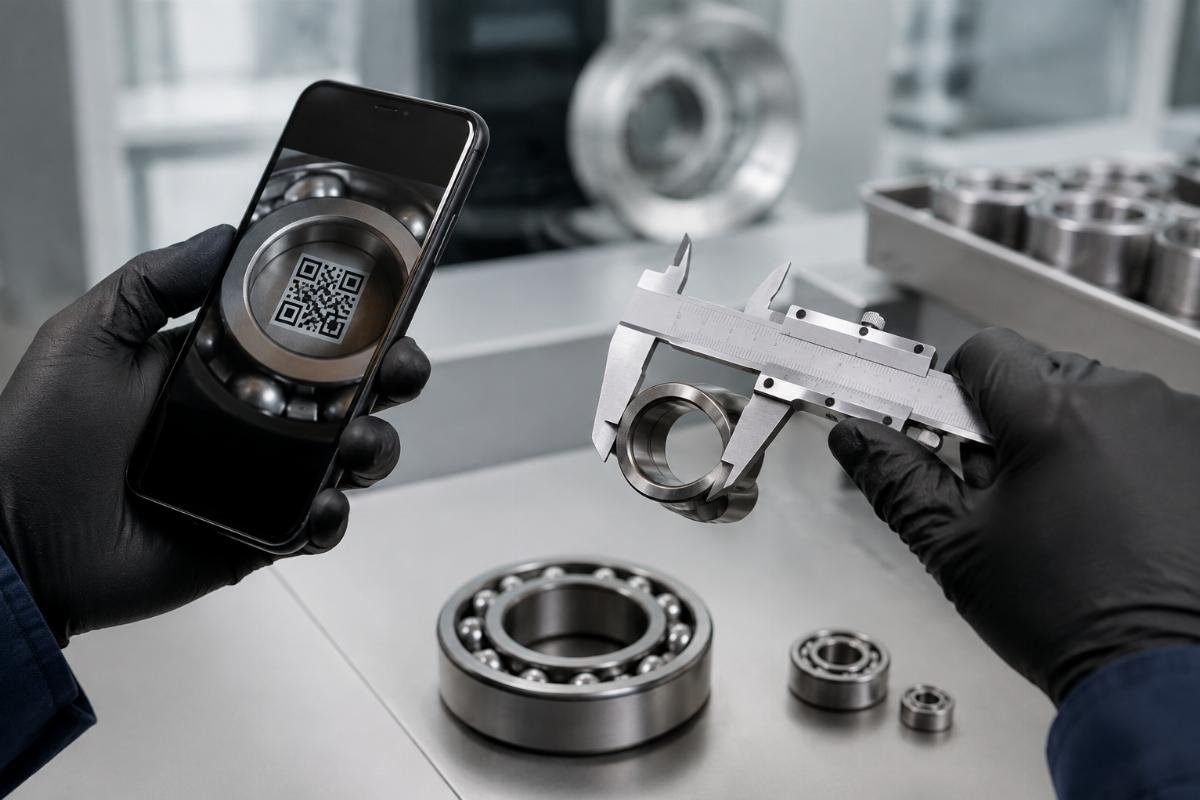

The second check—digital authentication—uses the QR code or scratch-off verification code printed on the bearing packaging. Scanning the code through the manufacturer’s official application or website returns a confirmation of whether the product serial number matches a genuine production batch. This check takes a minimal amount of time per unit and should be performed on every bearing before it enters the store or goes to the maintenance bench. In the Gulf distributor case described earlier, this single step intercepted a batch of non-genuine bearings that had passed all visual packaging inspections. [NEED_CITE: bearing manufacturer QR code and digital authentication procedures]

The third check—physical dimensional inspection—catches what the first two cannot. Counterfeit bearings that have learned to replicate packaging and digital codes still struggle to replicate the micron-level precision of the bearing’s internal geometry. Measuring the inner ring bore, the outer ring OD, and the width with calibrated instruments reveals deviations that genuine manufacturing facilities would not produce. Surface finish inspection of the roller paths and raceways under magnification provides a further layer of confidence. [NEED_CITE: bearing dimensional inspection methods for counterfeit detection]

For maintenance and MRO buyers managing critical petrochemical pump inventories, building these three checks into the receiving inspection procedure transforms authenticity verification from an afterthought into a standard operating discipline. SKF Timken bearings petrochemical reliability depends on this discipline as much as it depends on correct initial selection.

Conclusion

SKF Timken bearings petrochemical pump performance hinges on cross-reference verification, not model-number matching. Internal clearance class, cage material, and seal geometry must be validated against the specific API 610 pump operating conditions before any substitution is approved. Field failures—whether from mis-specification or counterfeiting—consistently demonstrate that the cost of proper verification is a fraction of the cost of an unplanned shutdown. Authorized-channel sourcing, digital authentication, and dimensional inspection together form the verification discipline that keeps petrochemical pumps running through their intended service intervals.
